ENGY Series Pad Printing Machine for pad printing Pad Printer from China Manufacturer

After-sales Service Provided:Engineers available to service machinery overseas
Description of product:Two Color Pneumatic Pad Printer
Max. printing size:80x120mm
Printing capacity:1,800 cycles/hour
Front & back working stroke:150mm
Air consumption:91litre/min(5bar)
Warranty:one year
Delivery time:5 days
Customized:Yes
key words:pad printer
Type:PAD PRINTER
Applicable Industries:Manufacturing Plant
Applicable Industries:Retail
Applicable Industries:Printing Shops
Applicable Industries:Other
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Not Available
Warranty of core components:3 months
Core Components:Gear
Condition:New
Plate Type:GRAVURE
Usage:Card Printer
Usage:Label Printer
Usage:Tube Printer
Automatic Grade:Semi-automatic
Color & Page:Two colors
Warranty:1 Year
After-sales Service Provided:Online support
Key Selling Points:Low Noise Level
Place of Origin:CN;GUA
Marketing Type:Hot Product 2020
Brand Name:ENGY
Voltage:220V/110V
Dimensions(L*W*H):L680 x W460 x H1310 mm
Weight:90KG
Certification:CE Certification

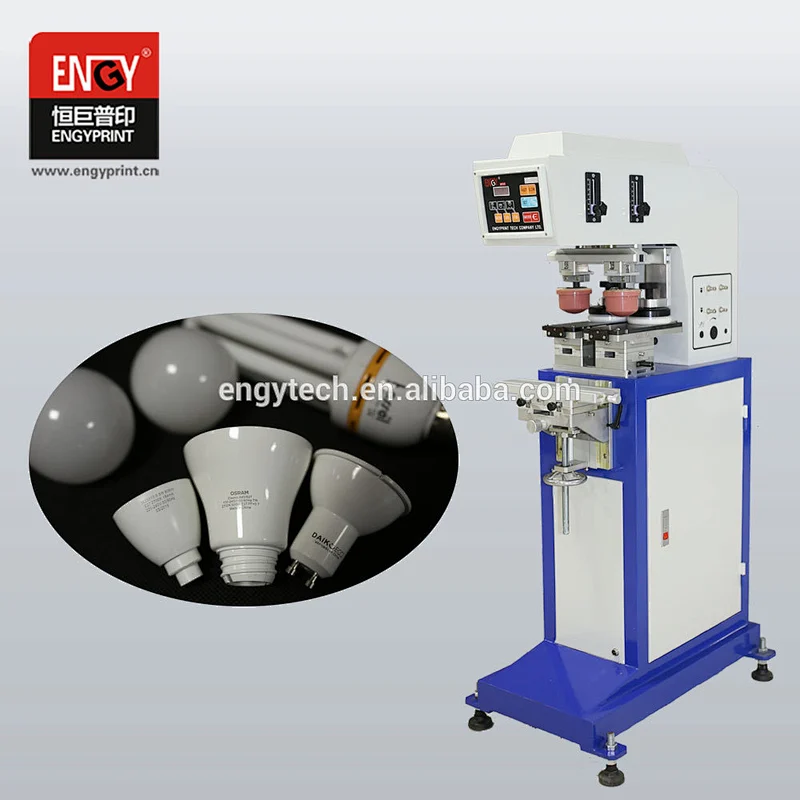

ENGY Series Pad Printing Machine

Product Description

ENGY Series Pad Printing Machine Standard Features

Standard Features:

Microprocessor operation system, electro-pneumatic control;
125mm working stroke, open tray design;
Programmable up and down, forward and rear stroke;
Versatile X, Y printing pad adjustment;
Ink cup base with X, Y, Z adjustment;
Heavy-duty construction with cabinet ensures years of reliable operation;
Stable, durable and fine workmanship;
Available for 1 color small image printing;
Foot pedal operation for single cycle;
Using SMC pneumatic components;
Installed safety guard and emergency stop button;
Complying with CE safety standards;
Operation manual.

ENGY Series Pad Printing Machine Specifications:

Model NO.	EN-Y150/2S
Plate size	150x100mm
Max. printing size	80x120mm
Printing capacity	1800cycles/hr
Drive	Pneumatic
Front & back working stroke	150mm
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	L780xW500xH1350
Weight	90kg

ENGY Series Pad Printing Machine Details:

Applications

Fields of Pad Printer Application:
Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
