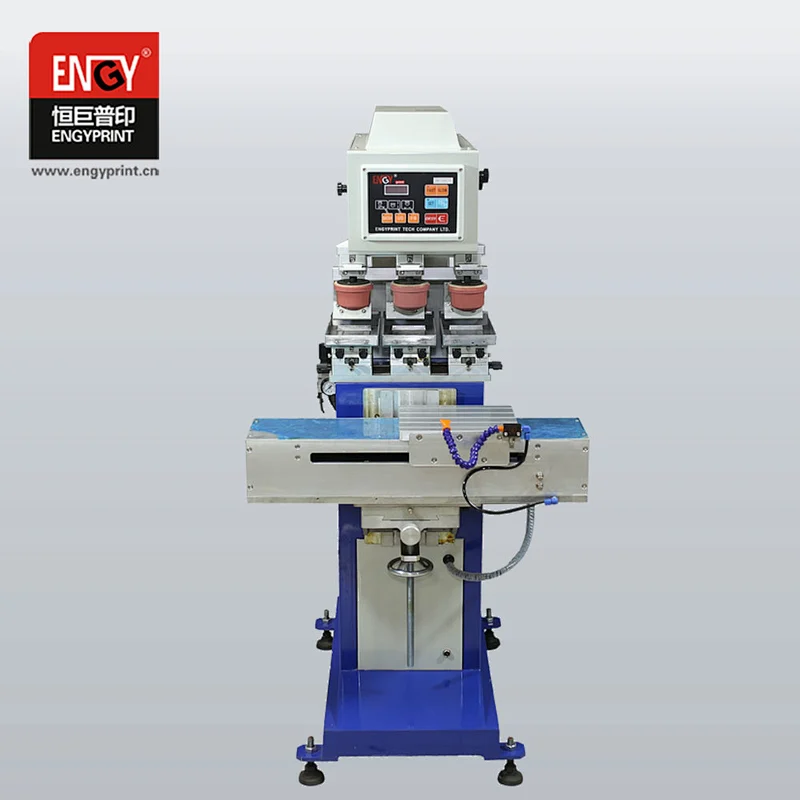

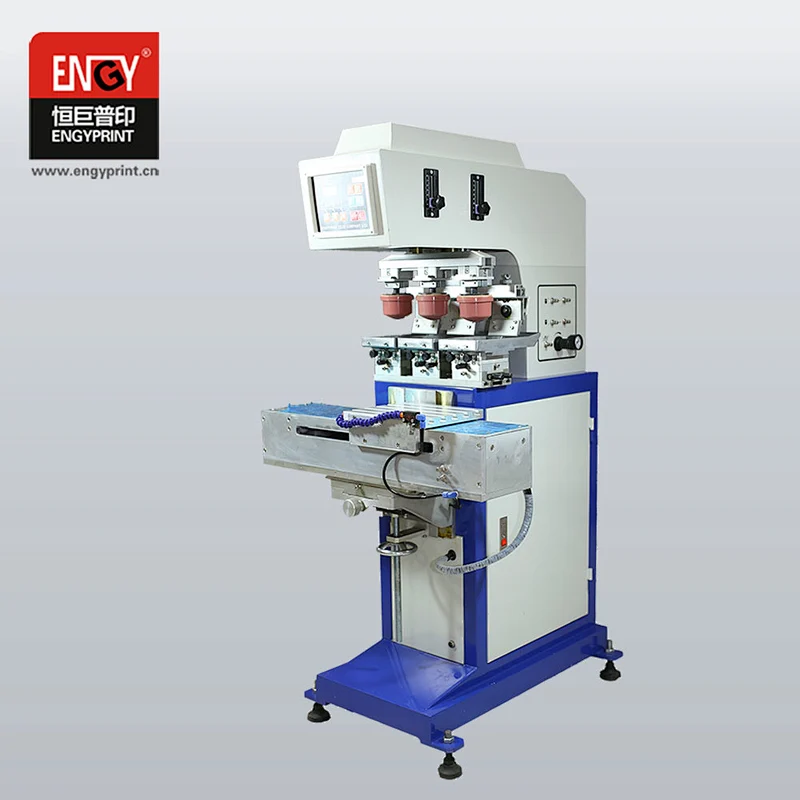

Engyprint 3 color inkwell pad printer for pad printing machine from China Manufacturer

After-sales Service Provided:Overseas service center available
Description of product:3 Color Open Cup Pad Printer
Printing color:3 color
Plate size:150x100mm
Type:Tampografia
Plate thickness:10mm
Printing capacity:1000cycles/hr
Drive:Pneumatic
Air consumption:91litre/min(5bar)
key words:smart color pad printer
Type:PAD PRINTER
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Not Available
Marketing Type:New Product 2020
Warranty of core components:3 months
Condition:New
Plate Type:GRAVURE
Usage:Bill Printer
Usage:Card Printer
Usage:Cloths Printer
Usage:Label Printer
Usage:Paper Printer
Usage:Tube Printer
Automatic Grade:Semi-automatic
Color & Page:Multicolor
Key Selling Points:High-accuracy
Place of Origin:CN;GUA
Applicable Industries:Manufacturing Plant
Applicable Industries:Retail
Applicable Industries:Printing Shops
Applicable Industries:Other
Applicable Industries:Pad Printing Factory
Applicable Industries:Pad printing supplies shop
Core Components:other
Brand Name:ENGY
Voltage:110V / 220V
Dimensions(L*W*H):L980xW630xH1430
Weight:125kg
Certification:CE Certification
Warranty:1 year

3 color inkwell pad printer for caps pad printing machine

Product Description

3 color inkwell pad printer for caps pad printing machine Standard Features

Standard Features:

*Suitable for 3 color small size printing, widely apply in many industries including stationery, toys, plastic, gift, electrical appliances, electronic, etc;
*Microprocessor operation system, electro-pneumatic control;
*160mm standard stroke, open cup design, low evaporation;

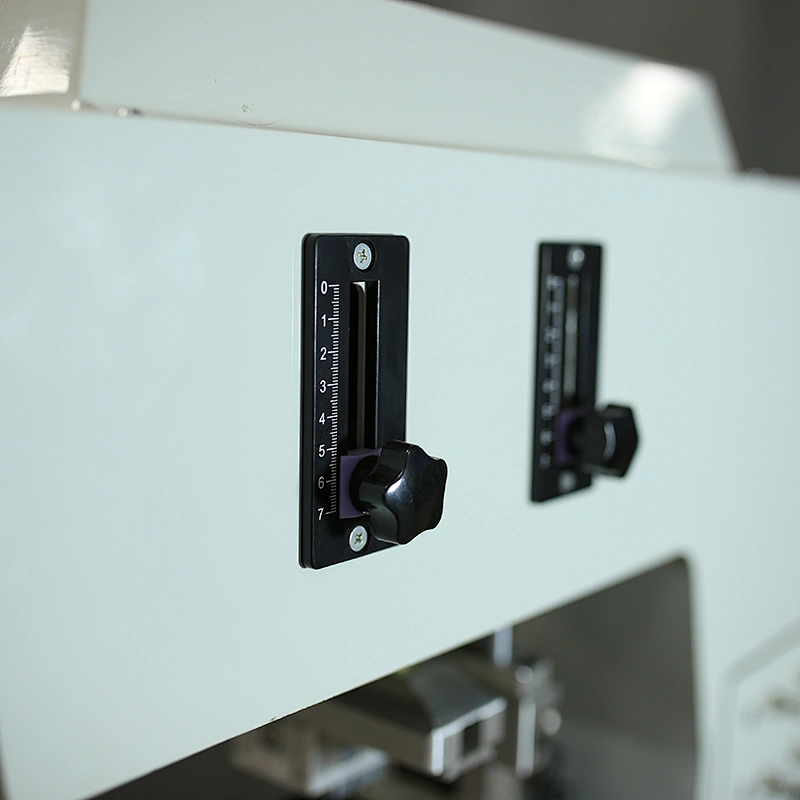

*Independent adjustment of up and down, forward and rear stroke;
*Versatile X, Y printing pad adjustment;

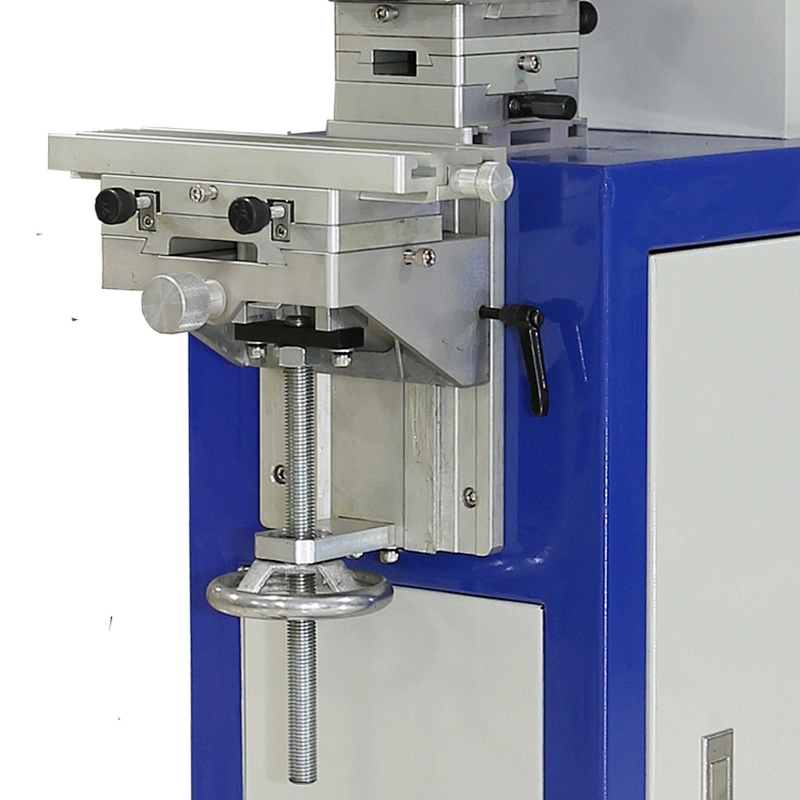

*Open cup base with X, Y, Z adjustment;
*The shuttle is disassembly flexible;
*Heavy-duty construction with cabinet ensures years of reliable operation;
*Stable, durable working and fine workmanship;
*Foot pedal operation for single cycle;

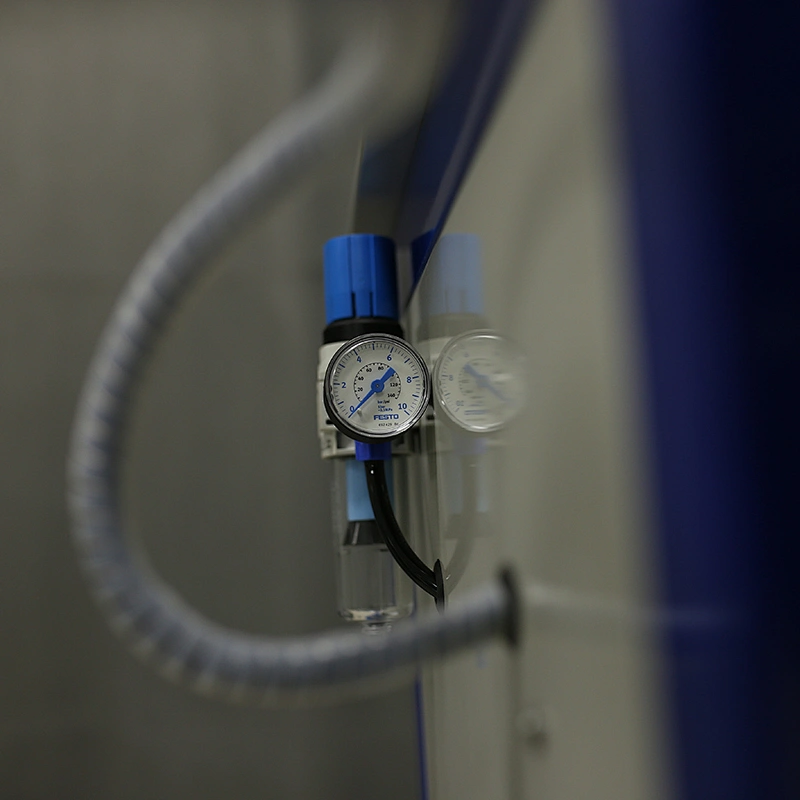

*Using Germany FESTO pneumatic components;
*Installed safety guard and emergency stop button(optional);
*Complying with CE safety standards.

3 color inkwell pad printer for caps pad printing machine Specifications:

Model NO.	EN-Y160/3S
Plate size	150x100mm
Max. printing size	80x120mm
Printing capacity	1000cycles/hr
Drive	Pneumatic
Front & back working stroke	160mm
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	L980xW630xH1430
Weight	125kg

3 color inkwell pad printer for caps pad printing machine Details:

Applications

Fields of Pad Printer Application:

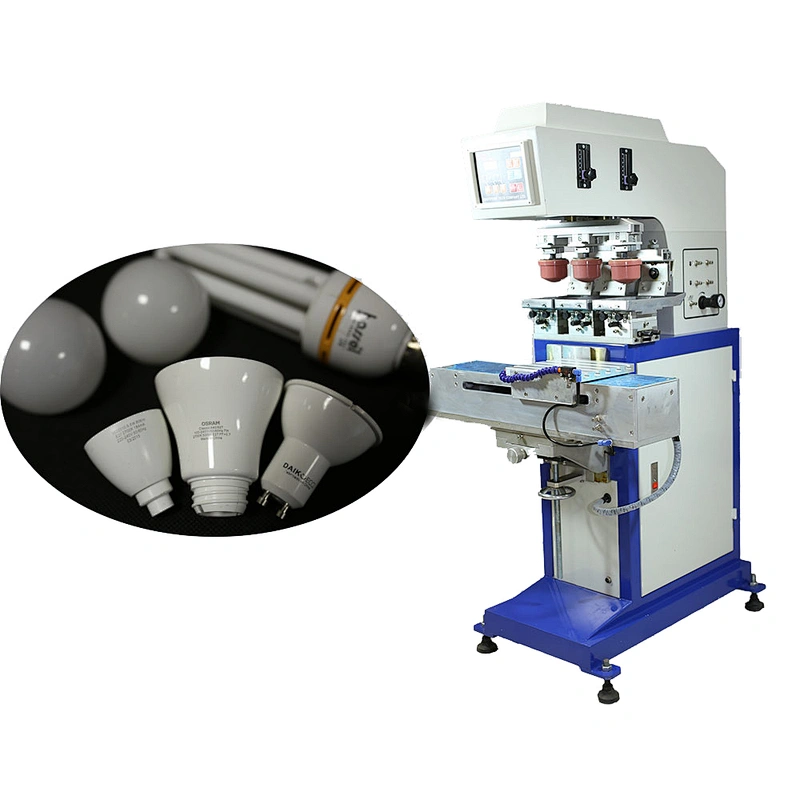

Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
