• After-sales Service Provided:Overseas service center available
• Description of product:1 Color two pads Closed Cup Pad Printer
• Printing color:1 color
• Plate size:200x100 mm
• Ink cup size (diameter):ID82*OD90mm
• Plate thickness:0.5mm
• Printing capacity:2600 cycles/hour
• Drive:Pneumatic
• Air consumption:91litre/min(5bar)
• key words:mini label printing machine
• Type:PAD PRINTER
• Applicable Industries:Manufacturing Plant
• Applicable Industries:Retail
• Applicable Industries:Printing Shops
• Applicable Industries:Other
• After Warranty Service:Online support
• Local Service Location:None
• Showroom Location:None
• Video outgoing-inspection:Provided
• Machinery Test Report:Not Available
• Warranty of core components:3 months
• Condition:New
• Plate Type:GRAVURE
• Usage:Bill Printer
• Usage:Card Printer
• Usage:Cloths Printer
• Usage:Label Printer
• Usage:Paper Printer
• Usage:Tube Printer
• Automatic Grade:Semi-automatic
• Color & Page:Single color
• Key Selling Points:Multi Color
• Place of Origin:CN;GUA
• Marketing Type:Hot Product 2020
• Core Components:Cylinder
• Brand Name:ENGY
• Voltage:110V / 220V
• Dimensions(L*W*H):L680 x W460 x H1310 mm
• Weight:73 kg
• Certification:CE Certification
• Warranty:1 year

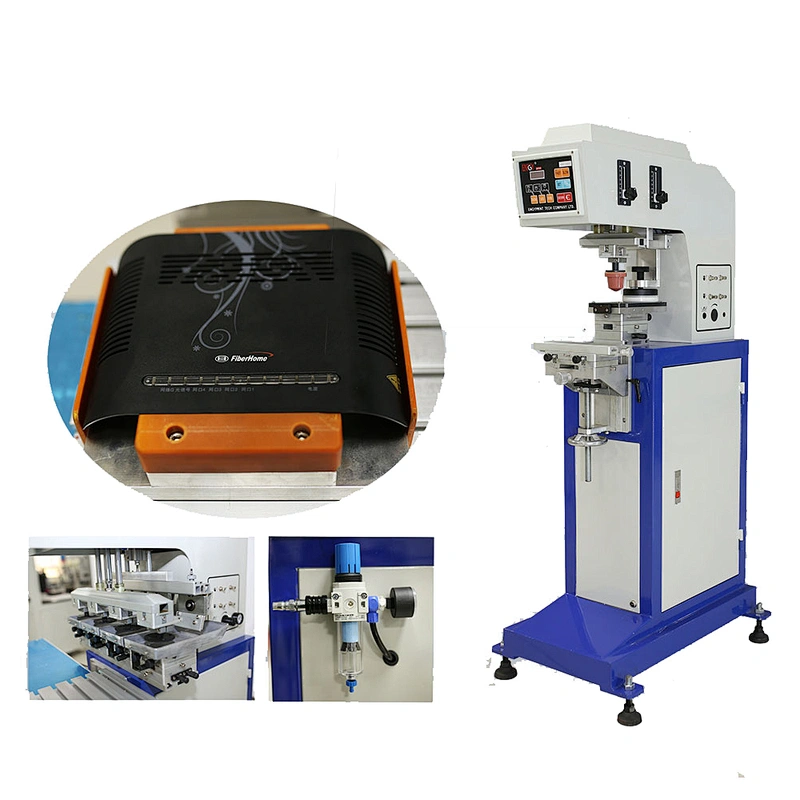

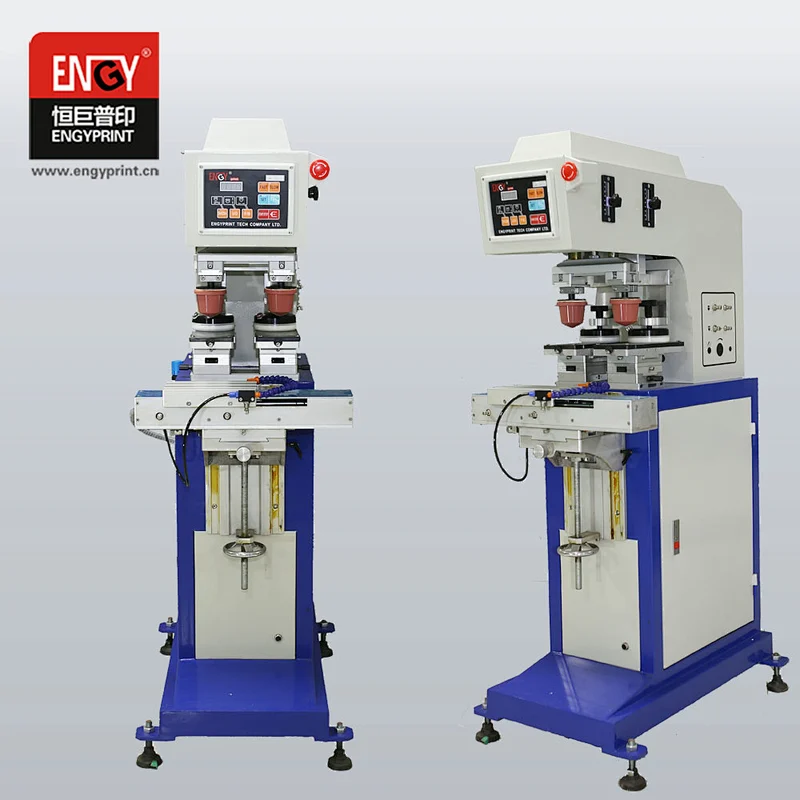

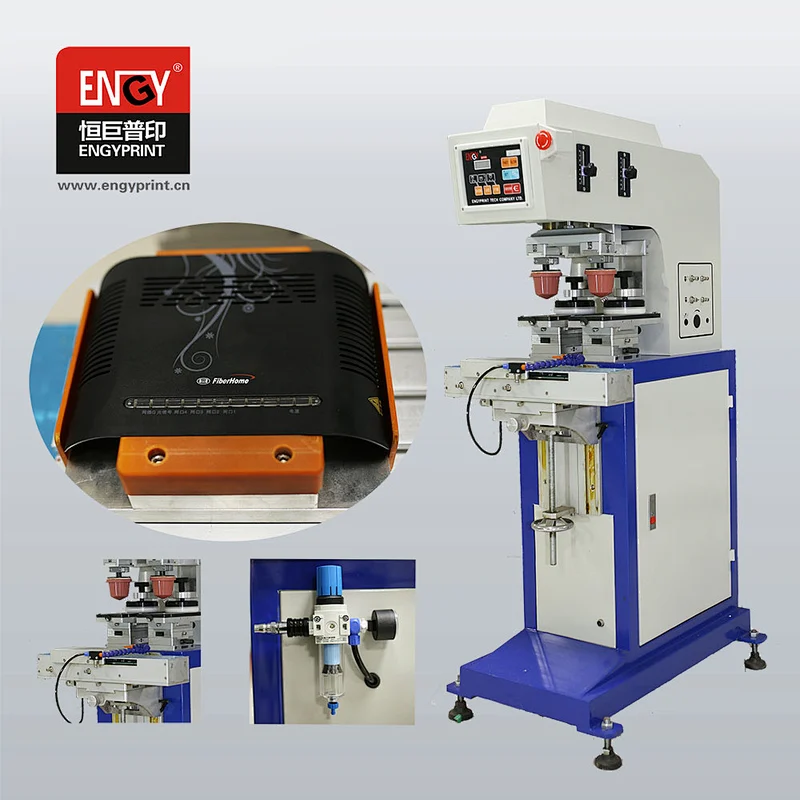

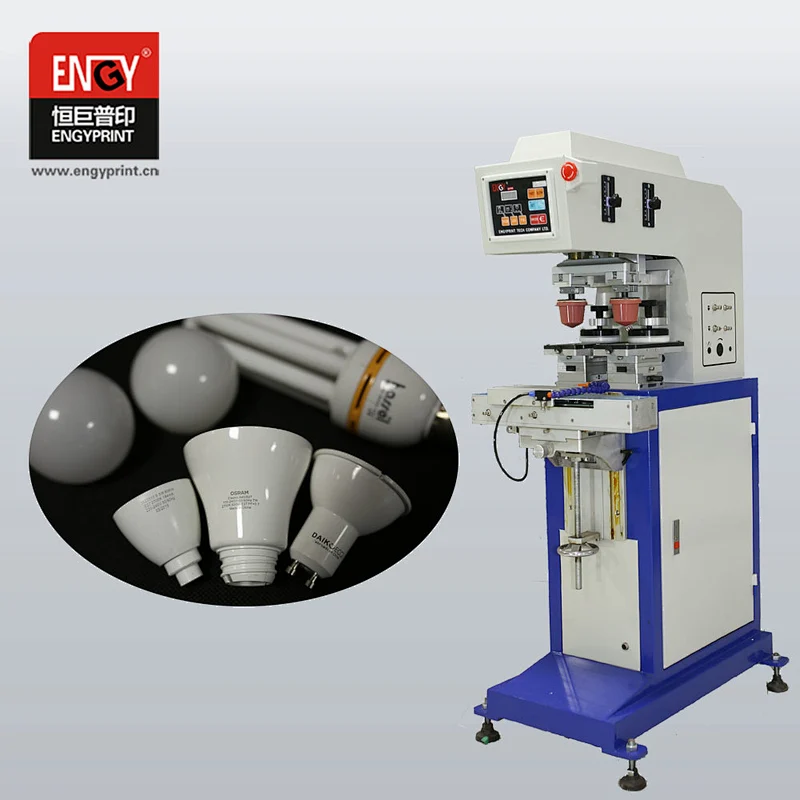

One Color Two pads Label Printing Machine Engyprint Pad Printer

Product Description



One Color Two pads Label Printing Machine Engyprint Pad Printer Standard Features

Standard Features:   Suitable for one color small size fast printing, widely apply in many industries including stationery, toys, plastic, gift, electrical appliances, electronic, etc. Microprocessor operation system, electro-pneumatic control; 125mm working stroke, ink cup design, more environmental; Programmable up and down, forward and rear stroke; Versatile X, Y printing pad adjustment; Ink cup base with X, Y, R adjustment, worktable X,Y adjustment; Heavy-duty construction with cabinet; Stable, durable working and fine workmanship; Foot pedal operation for single cycle; Using Germany FESTO pneumatic components; Installed safety guard and emergency stop button (optional); Complying with CE safety standards;



One Color Two pads Label Printing Machine Engyprint Pad Printer Specifications:





Model NO.	EN-C125/1D
Plate size	200 x 100mm
Max. printing size	80x80mm
Printing capacity	2600 cycles/hour
Drive	Pneumatic
Front & back working stroke	125mm
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	L680 x W460 x H1310 mm
Weight	73 kg





One Color Two pads Label Printing Machine Engyprint Pad Printer Details:
