Ink Pad Printer EN-C200/2S Square Plate from China Manufacturer

After-sales Service Provided:Overseas service center available
Description of product:2 Color Closed Cup Pad Printer
Plate size:300x100mm
Ink cup size (diameter):ID90*OD100mm
Plate thickness:0.5mm
Warranty:one year
Printing capacity:1200cycles/hr
Drive:Pneumatic
Air consumption:91litre/min(5bar)
key words:pad printer
Type:PAD PRINTER
Applicable Industries:Printing Shops
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Not Available
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Motor
Condition:New
Plate Type:GRAVURE
Usage:Bill Printer
Usage:Card Printer
Usage:Cloths Printer
Usage:Label Printer
Usage:Paper Printer
Usage:Tube Printer
Automatic Grade:Semi-automatic
Color & Page:Two colors
Warranty:1 Year
After-sales Service Provided:Online support
Key Selling Points:High-accuracy
Place of Origin:CN;GUA
Brand Name:ENGY
Voltage:110V / 220V
Dimensions(L*W*H):1020x610x1450 mm
Weight:170kg
Certification:CE Certification

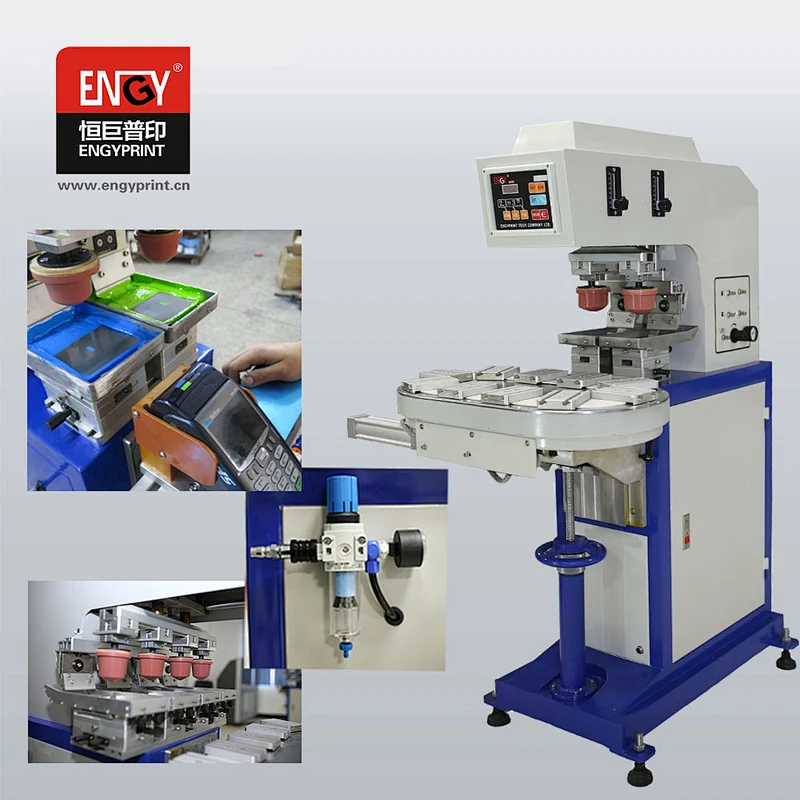

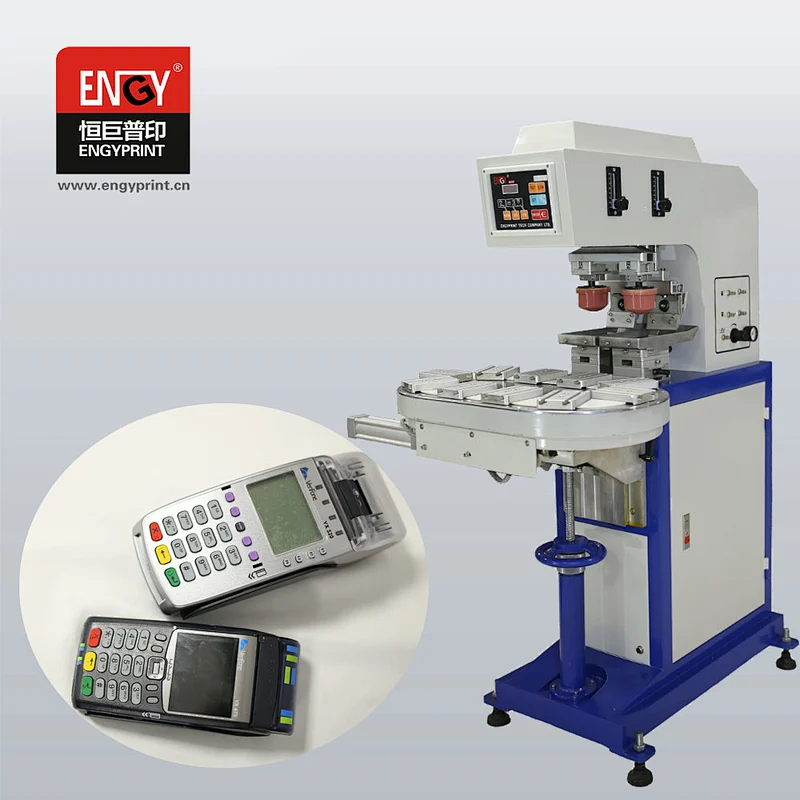

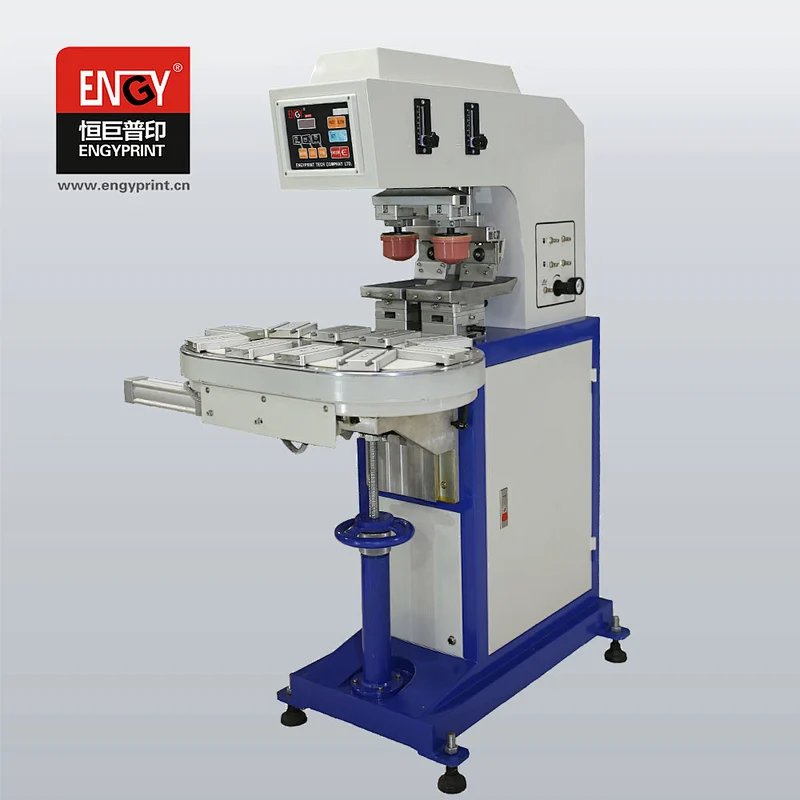

Ink Pad Printer EN-C200/2S Square Plate

Product Description

Ink Pad Printer EN-C200/2S Square Plate Standard Features

Standard Features:

*Suitable for 2 color small size printing, widely apply in many industries including stationery, toys, plastic, gift, electrical appliances, electronic, etc;
*Microprocessor operation system, electro-pneumatic control;
*200mm standard stroke, ink cup design, no smell and low evaporation;

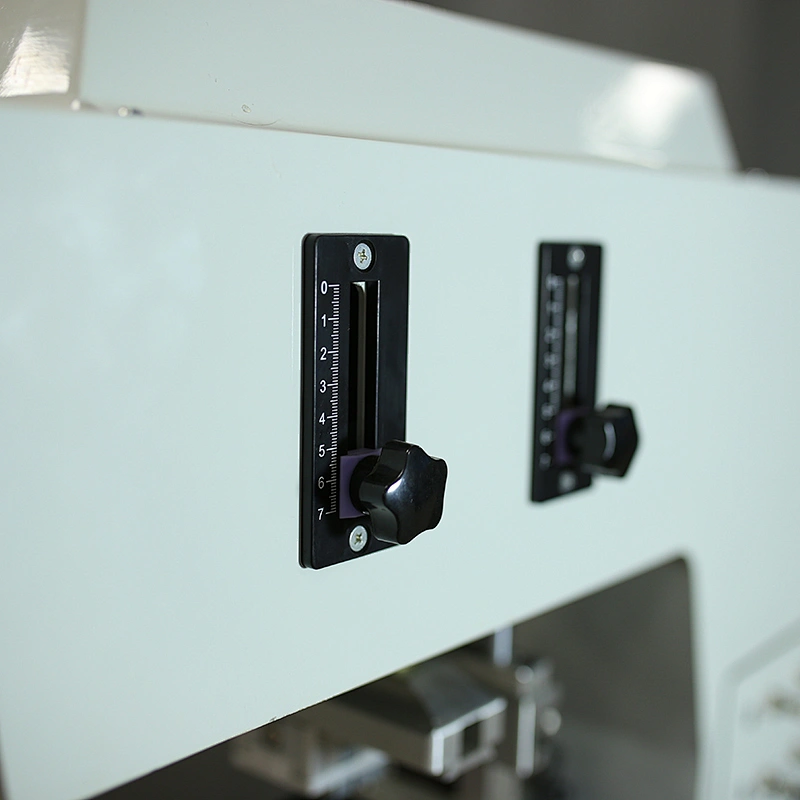

*Independent adjustment of up and down, forward and rear stroke;
*Versatile X, Y printing pad adjustment;
*Ink cup base with X, Y, Z adjustment;
*The shuttle is disassembly flexible;
*Heavy-duty construction with cabinet ensures years of reliable operation;
*Stable, durable working and fine workmanship;

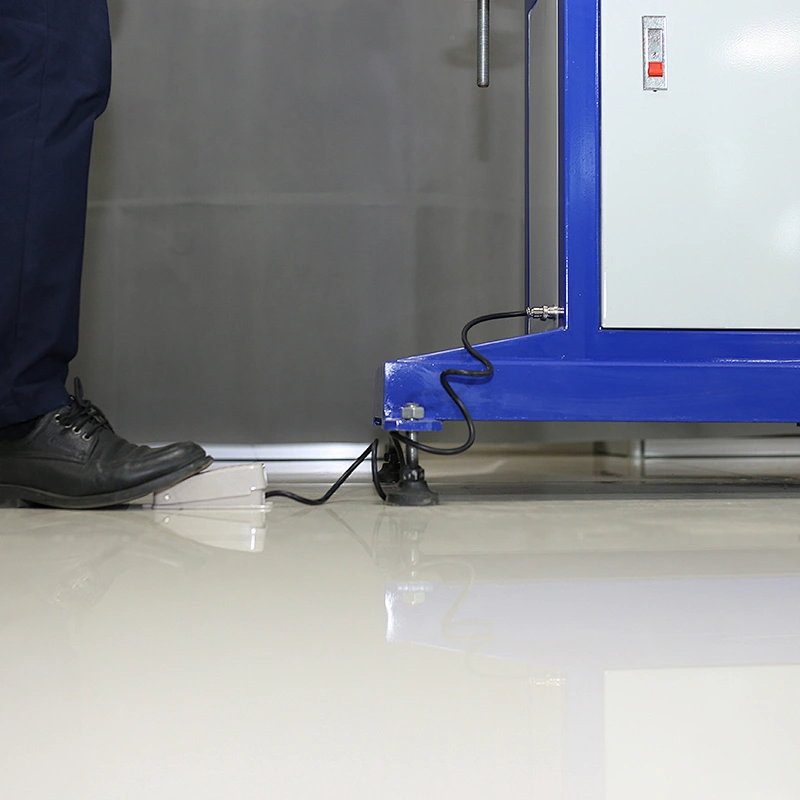

*Foot pedal operation for single cycle;
*Using Germany FESTO pneumatic components;
*Installed safety guard and emergency stop button(optional);
*Complying with CE safety standards.

Ink Pad Printer EN-C200/2S Square Plate Specifications:

Model NO.	EN-C200/2S
Plate size	300x100mm
Max. printing size	90x90mm
Printing capacity	1200cycles/hr
Drive	Pneumatic
Front & back working stroke	200mm
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	1020x610x1450 mm
Weight	170kg

Ink Pad Printer EN-C200/2S Square Plate Details:

Applications

Fields of Pad Printer Application:
Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
