• After-sales Service Provided:Engineers available to service machinery overseas
• Product Name:tampo pad printing machine /1 color box set pad printer
• Plate Size:150x150mm
• Max. Printing Size:120x120mm
• Printing capacity:1800cycles/hr
• Drive:Pneumatic
• Front & Back Working Stroke:160mm
• Air Requirement:5 bar (72.5 psi)
• Main Voltage:110V/220V 50/60Hz 40W
• Machine Size:L800xW510xH1430 mm
• Type:PAD PRINTER
• Applicable Industries:Manufacturing Plant
• Applicable Industries:Printing Shops
• After Warranty Service:Video technical support
• Local Service Location:None
• Showroom Location:None
• Video outgoing-inspection:Provided
• Machinery Test Report:Not Available
• Marketing Type:New Product 2020
• Warranty of core components:1 Year
• Core Components:Engine
• Condition:New
• Plate Type:GRAVURE
• Usage:Bill Printer
• Usage:Card Printer
• Usage:Cloths Printer
• Usage:Label Printer
• Usage:Paper Printer
• Usage:Tube Printer
• Usage:Pad Printer
• Automatic Grade:Semi-automatic
• Color & Page:Single color
• Warranty:1 Year
• After-sales Service Provided:Online support
• Key Selling Points:High-accuracy
• Place of Origin:CN;GUA
• Brand Name:ENGY
• Voltage:110V/220V
• Dimensions(L*W*H):L800xW510xH1430 mm
• Weight:100KG
• Certification:CE Certification

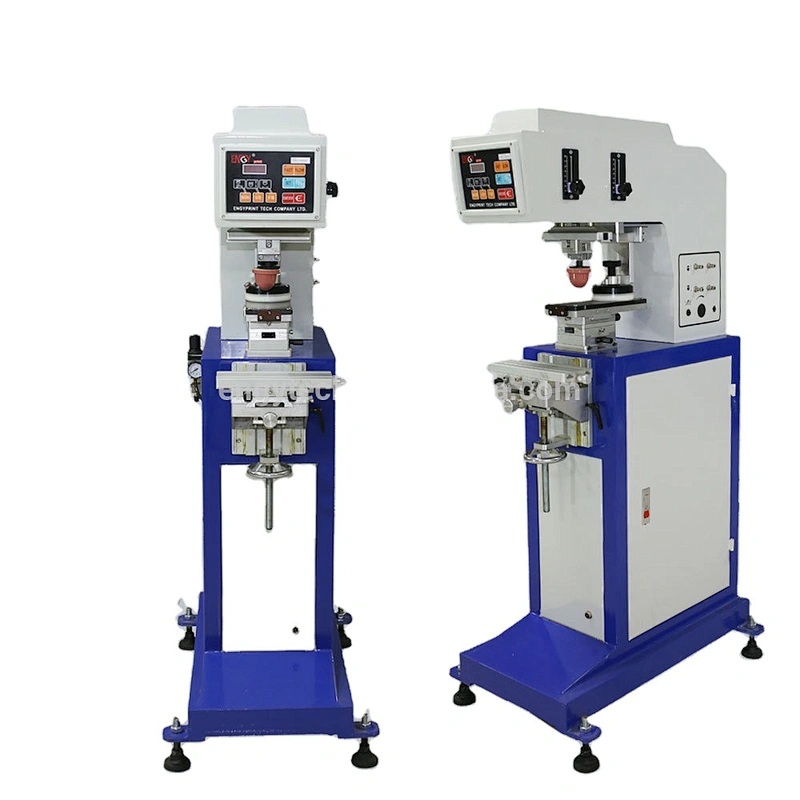

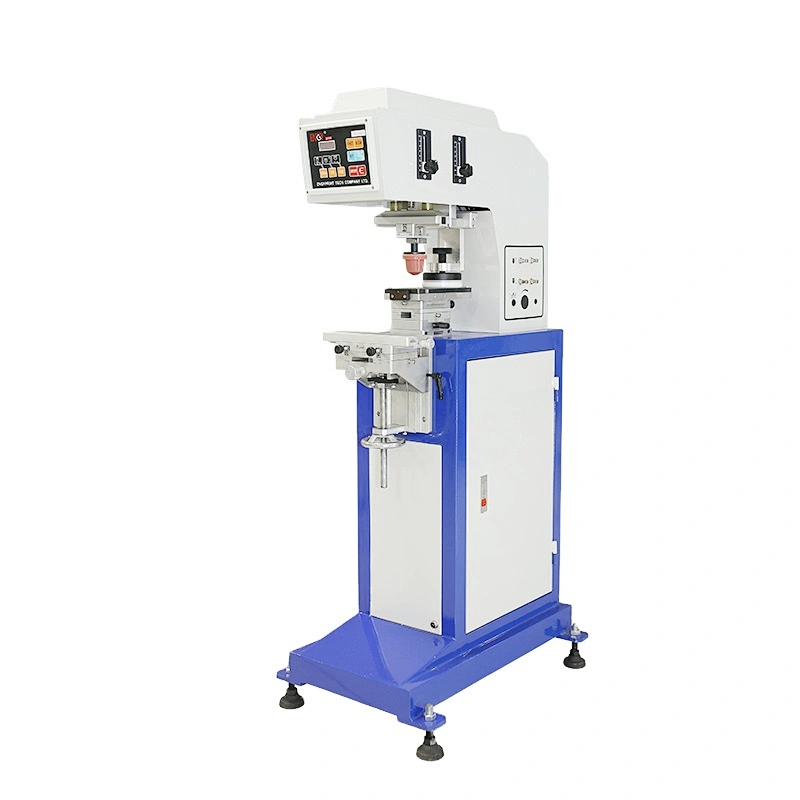

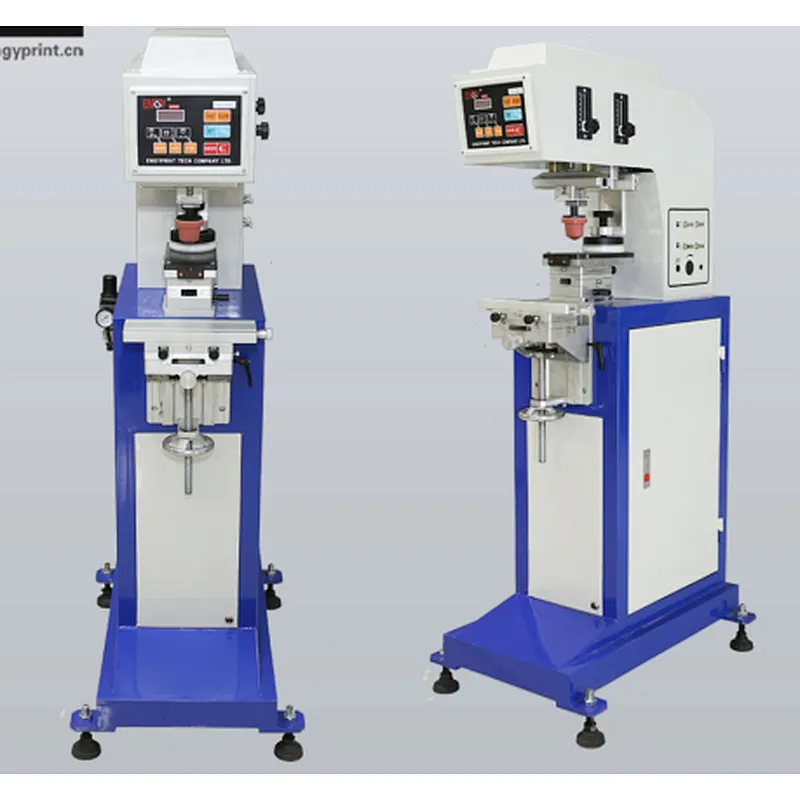

1 Color machines for printing logos Pneumatic Ink Label Tampon Pad Printing Machine For Tagless / Tag

Product Description

Semi-Automatic pad printing machine/pad printer

1 color pad printing machine/pad printer

open ink tray pad printing machine/pad printer

EN-Y160/1D

Model NO.	EN-Y160/1D
Plate Size	150x150mm
Max. Printing Size	120x120mm
Printing Capacity	1800cycles/hr
Drive	Pneumatic
Front & Back Working Stroke	160 mm
Air Requirement	5 bar (72.5 psi)
Main Voltage	110V/220V 50/60Hz 40W
Machine Size	L800xW510xH1430 mm
Net Weight	100kg
Feture And Performance	1.microcomputer control the function of movement, low noise, speed, scraping clean, stable performance, simple operation. 2.the machine is suitable for stationery, toys, gifts, electrical appliances, electronics and other products of medium-sized patterns monochrome or one-color printing printing.





Fields of Pad Printing Application:



Pad printing machine is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting

goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches,

cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes,electronic

components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
